Contents: Legacy Group Single Pin High Voltage Connectors

Reynolds公司具有40年生產傳統單接點高壓接頭和電纜組件的經驗, 客戶可從產品型錄中找到所需要的產品,

在全世界Reynolds公司是設計生產單接點高壓接頭和電纜組件的領導廠商,大部份的產品都能在高度70,000 英呎 (21,000 公尺) 和-55 to +125°C 的環境下正常工作,其他產品也都能適用於惡劣環境中.

The Legacy Group of connectors contained in this catalog provides a wide selection of single pin high voltage connectors and cable assemblies. These products, some of which have been in production for more than 40 years, reflect the legacy of Reynolds Industries’ strong commitment to engineering, quality and customer service.

Reynolds leads the connector industry worldwide in the design of high voltage connectors capable of operating at altitudes up to 70,000 ft./21,000M while exposed to temperatures as low as -55°C and up to +125°C. Not all connectors in this catalog are designed to operate at those extremes, but all will perform with a high degree of reliability when operated as specified.

Reynolds also manufactures single pin and multi-pin connectors within its Advanced Group of connectors. Technologically advanced, these connectors represent the state of the art in high voltage connector manufacture. They are shown in the Advanced Group connector catalog. To request this catalog, please contact Reynolds or your Reynolds representative.



SeriesDescription
Operating Voltage
(KVDC)

Connectors for Laboratory, Ground Level Military and Industrial Applications
31, 310, 311General Specifications
31Single pin coaxial connectors. Sea level rating6.5
310Same as series 31 for reduced atmospheric pressure operation15
311Polarized version of series 310 with ground spring fingers15
311Special Order Adaptors15
311Non-Illustrated Special Order Connectors and Adaptors15
531General Specifications10
531Coaxial connectors. Bayonet coupling. Recessed contacts10
521General Specifications20
521Coaxial connectors. Bayonet coupling. Recessed contacts20
R75General Specifications40 - 75
R75Corona-resistant cable assemblies and terminators, Page 140 - 75
R75Corona-resistant cable assemblies and terminators, Page 240 - 75
HVIDGeneral Specifications17 - 60
HVIDHigh voltage in-line disconnects, Page 117 - 60
HVIDHigh voltage in-line disconnects, Page 217 - 60

Hi-Rel Connectors for Military/Aerospace Applications
600 SeriesGeneral Specifications5
600Sub-miniature high voltage coaxial connectors5
600 S“Space Use” Series 600 for deep space applications5
610Similar to Series 600 with larger coupling threads5
700 SeriesGeneral Specifications10-25
730/830Plugs, receptacles and cable assemblies10
737Plugs, receptacles and cable assemblies15
720Plugs, receptacles and cable assemblies20
727Plugs, receptacles and cable assemblies25
401General Specifications40
401Single pin, shielded connectors. Bayonet coupling40

Connectors for Limited Military/Aerospace Applications
C SeriesGeneral Specifications
C 730Lead assemblies and receptacles10
C 737Lead assemblies and receptacles15
C 720Lead assemblies and receptacles20
C 727Lead assemblies and receptacles25
C 735Lead assemblies and receptacles30
C 740Lead assemblies and receptacles40
C 750Lead assemblies and receptacles50
SID SeriesGeneral Specifications
SIDPush-on/Pull-off cable assemblies and receptacles, Page 115
SIDPush-on/Pull-off cable assemblies and receptacles, Page 215


 Index by Part Number
 AWG wire data
 Bulk cable specifications and ordering
 Application guide for product selection
 Paschen curve: Voltage arc level vs atmospheric pressure
 Cable preparation and assembly instructions - Series 31
 Cable preparation and assembly instructions - Series 310, 311
 Cable preparation and assembly instructions - Series 521
 Cable preparation and assembly instructions - Series 600, 610
 Cable preparation and assembly instructions, Series 730/830, 737
 Cable preparation and assembly instructions, Series 730/830, 737
w/ Silicone Coated FEP Cable & Nomex Jacket
 Cable preparation and assembly instructions, Series 720, 727

31, 310, 311 General Specifications

Series 31 Sea Level Rated

Double-ended Cable Assembly


Plug Bag Assembly


Series 311

Polarization
Series 311 connectors feature interface polarization which allows the system design engineer to use the same basic connector in three different circuits without concern of mis-mating the circuits.
Polarization is controlled by the numbers and/or dissimilar spacing of the bayonet lugs on the receptacle. There are three conditions of polarization available.


Identification
Grooves have been machined on the knurled coupling rings to provide both visual and touch identification for the three conditions of polarization.

These reliable coaxial connectors have been in production since 1950. Available as plug connectors, kits and cable assemblies, they mate all series 311 Cond. 1 connectors and adaptors. Rated at 6.5 KVDC for sea level use only. The operating temperature range is -40°C to +85°C.
Series 310 For Operation at Reduced Pressure
A sealed version of the series 31 that mates all series 311
Cond. 1 receptacles and adaptors. Rated at 15 KVDC. The operating temperature range is -40°C to +85°C.
Series 311 For Operation at Reduced Pressure
This series features seals for reduced pressure operation, a shell to shell grounding spring finger shield, a hooded female socket and three polarizing conditions. The bayonet coupling has machined rings to designate polarization by either sight or feel. Rated at 15 KVDC. The operating temperature range is -40°C to +85°C.
Applications
These connectors are widely used in laboratory experiments
and field testing of ordnance products.
Interface cleaning
High voltage connectors must always be cleaned prior to mating. The proper cleaning method is to wipe or spray the interface area with isopropyl alcohol and immediately blow an inert gas such as dry nitrogen over the interface area until dry. No other cleaning method should be attempted.


Single pin coaxial connectors. Sea level rating

Plugs

     P/N: 167-0669    Series 31 (6.5 KVDC) Female Cable Connector

- Cable connector (female contact)
- 6.5 KVDC rated
- Uses type “C” coaxial cable, P/N 167-2669
- Solder braid termination
- Mating connectors: Mates series 311 Cond. 1 receptacles and adaptors shown on pp. 6 and 7 of this catalog

General Specifications
Cable preparation and assembly instructions

Receptacles (Male)
Series 31 plugs and cable assemblies mate series 311 Cond. 1 receptacles. Series 311 Cond. 1 receptacles are designated as standard items.

Adaptors
A selection of series 311 Cond. 1 adaptors are available on special order for use with series 31 connectors and cable assemblies. Click here to see Series 311 Cond. 1 adaptors.


Cable Assemblies

     P/N 167-1615    Series 31 (6.5 KVDC) Double Ended Cable Assembly


- Double-Ended Cable Assembly
- 6.5 KVDC rated
- Sea level operation
- Uses type “C” cable P/N 167-2669
- Solder braid termination
- Mating connectors: Mates all series 311 Cond. 1 receptacles and adaptors.
- 100% voltage test: 7.5 KVDC @ sea level

     P/N 167-1617   Series 31 (6.5 KVDC) Single Ended Pigtail Cable Assembly
- Single-Ended Pigtail Cable Assembly
- 6.5 KVDC rated
- Sea level operation
- Uses type “C” cable P/N 167-2669
- Solder braid termination
- Mating Connectors: Mates all series 311 Cond. 1 receptacles and adaptors.
- 100% voltage test: 7.5 KVDC @ sea level

Download this page as a PDF for best print quality.



Same as series 31 for reduced atmospheric pressure operation

Plugs

     P/N 167-4356    Series 310 (15 KVDC) Female Cable Connector

- Cable connector (female contact)
- 15 KVDC rated
- Uses type “C” cable P/N 167-2669
- Crimp braid termination
- Mating connectors: Mates series 311
- Cond. 1 receptacles and adaptors

Receptacles (Male)
  • Series 310 plugs and cable assemblies mate all series 311 Cond.1 receptacles.
  • Series 311 Cond. 1 receptacles are designated as standard items.

Adaptors

  • A selection of series 311 Cond. 1 adaptors are available on special order for use with series 310 connectors and cable assemblies. Series 311 Cond. 1 adaptors are shown here.

Cable Assemblies

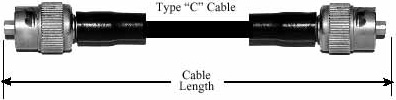

     P/N 167-4358   Series 310 (15 KVDC) Double Ended Cable Assembly


- Double-Ended Cable Assembly
- 15 KVDC rated
- Uses type “C” cable P/N 167-2669
- Crimp braid termination
- Mating connectors: Mates series 311 Cond. 1 receptacles and adaptors.
- 100% voltage test: 21 KVDC @ 70,000 ft. simulated altitude and ambient temperature

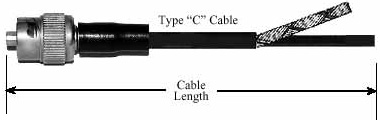

     P/N 167-4360   Series 310 (15 KVDC) Single Ended Pigtail Cable Assembly
- Single-Ended, Pigtail Cable Assembly
- 15 KVDC rated
- Uses type “C” cable P/N 167-2669
- Crimp braid termination
- Mating connectors: Mates series 311 Cond. 1 receptacles and adaptors.
- 100% voltage test: 21 KVDC @ 70,000 ft. simulated altitude and ambient temperature

Download this page as a PDF for best print quality.



Polarized version of series 310 with ground spring fingers

 Plugs
Cond. 1 (shown)
P/N 167-7624-1*
Series 311 Polarized Female Cable Connector (Cond. 1)
Cond. 2
P/N 167-7624-2**
Series 311 Polarized Female Cable Connector (Cond. 2)
Cond. 3
P/N 167-7624-3**
Series 311 Polarized Female Cable Connector (Cond. 3)
- Polarized
- Plug (female)
- Hooded socket contact
- Grounding spring finger sleeve
- Uses type “C” cable P/N 167-2669
- Crimp braid termination
*Standard item
** Special order item
For general specifications
For cable preparation and assembly instructions
Bulk cable ordering & specifications

 Receptacles (Male)
Cond. 1 (shown)
P/N 167-7792*
Series 311 Polarized Male Receptacle (Cond. 1)

Cond. 2
P/N 167-7793**
Series 311 Polarized Male Receptacle (Cond. 2)
Cond. 3
P/N 167-7794**
Series 311 Polarized Male Receptacle (Cond. 3)
- Polarized
- Non-sealed Front Mount Receptacle
*Standard item. Mates series 31, 310 and 311 series plugs and cable assemblies
100% voltage test: 21 KVDC. Sea level
** Special order item

 Cable Assemblies
Cond. 1 ea. end (shown)
P/N 178-7026
Series 311 Double Ended Cable Assembly
Standard Cable Assembly
Cond. 2 ea. end
P/N 178-7027
Series 311 Double Ended Cable Assembly (Cond 2 ea. end)
Non-Standard Cable Assembly
Available on special order only
Cond. 3 ea. end
P/N 178-7028
Series 311 Double Ended Cable Assembly (Cond 3 ea. end)
Non - Standard Cable Assembly
Available on special order only
- Polarized
- Double-Ended Cable Assembly
- 15 KVDC rated
- Uses type “C” cable P/N 167-2669
- Crimp braid termination
- Mating connectors: Mates all series 311 receptacles with corresponding Polarization Condition.
- 100% voltage test: 21 KVDC @ 70,000 ft. (simulated) and ambient temperature
Bulk cable ordering and specifications
For general specifications

Cond. 1 ea. end (shown)
P/N 178-7032
Series 311 Single Ended Pigtail Cable Assembly
Standard Cable Assembly >
Cond. 2 ea.end
P/N 178-7033
Pigtail Cable Assembly (Cond 2 ea. end)
Non-Standard Cable Assembly
Available on special order only
Cond. 3 ea. end
P/N 178-7034
Series 311 Single Ended Pigtail Cable Assembly (Cond 3 ea. end)
Non - Standard Cable Assembly
Available on special order only
- Polarized
- Single-Ended, Pigtail Cable Assembly
- 15 KVDC rated
- Uses type “C” cable P/N 167-2669
- Crimp braid termination
- Mating connectors: Mates all series 311 receptacles with corresponding Polarization Condition
- 100% voltage test: 21 KVDC @ 70,000 ft. (simulated) and ambient temperature
Bulk Cable ordering and specification
For General Specificationsv



Download this page as a PDF for best print quality.



Special Order Adaptors

Cond. 1
Cond. 2
Cond. 3

"T" Adaptor Male - Female - Male

Cond. 1 P/N 167-7825-1

Series 311 'T' Adaptor Male - Female - Male (Cond. 1)
Cond. 2 P/N 167-7825-2

Series 311 'T' Adaptor Male - Female - Male (Cond. 2)
Cond. 3 P/N 167-7825-3

Series 311 'T' Adaptor Male - Female - Male (Cond. 3)

Male Shorting Plug

Cond. 1 P/N 167-7905-1

Series 311 Male Shorting Plug (Cond. 1)
Cond. 2 P/N 167-7905-2

Series 311 Male Shorting Plug (Cond. 2)
Cond. 3 P/N 167-7905-3

Series 311 Male Shorting Plug (Cond. 3)

"T" Adaptor Male - Male - Male

Cond. 1 P/N 167-7826-1

Series 311 'T' Adaptor Male - Male - Male (Cond. 1)
Cond. 2 P/N 167-7826-2

Series 311 'T' Adaptor Male - Male - Male (Cond. 2)
Cond. 3 P/N 167-7826-3
Series 311 'T' Adaptor Male - Male - Male (Cond. 3)

Female Shorting Plug

Cond. 1 P/N 167-7903-1

Series 311 Female Shorting Adaptor (Cond. 1)
Cond. 2 P/N 167-7903-2

Series 311 Female Shorting Adaptor (Cond. 2)
Cond. 3 P/N 167-7903-3
Series 311 Female Shorting Adaptor (Cond. 3)

Straight Adaptor Female - Male

Cond. 1 to Cond. 2 P/N 167-7146   Series 311 Straight Adaptor Female - Male (Cond. 1 to Cond. 2)
Cond. 1 to Cond. 3 P/N 167-7152
Series 311 Straight Adaptor Female - Male (Cond. 1 to Cond. 3)
Cond. 2 to Cond. 1 P/N 167-7157
Series 311 Straight Adaptor Female - Male (Cond. 2 to Cond. 1)
Cond. 2 to Cond. 3 P/N 167-7162
Series 311 Straight Adaptor Female - Male (Cond. 2 to Cond. 3)
Cond. 3 to Cond. 1 P/N 167-7158
Series 311 Straight Adaptor Female - Male (Cond. 3 to Cond. 1)
Cond. 3 to Cond. 2 P/N 167-7163
Series 311 Straight Adaptor Female - Male (Cond. 3 to Cond. 2)

Female Protective Cover
(no electrical function)

Cond. 1 P/N 167-7864-1

Series 311 Female Protective Cover (Cond. 1)
Cond. 2 P/N 167-7864-2

Series 311 Female Protective Cover (Cond. 2)
Cond. 3 P/N 167-7864-3

Series 311 Female Protective Cover (Cond. 3)

Straight Adaptor Male - Male

Cond. 1 to Cond. 1 P/N 178-6484   Series 311 Straight Adaptor Male - Male (Cond. 1 to Cond. 1)
Cond. 1 to Cond. 2 P/N 178-6485
Series 311 Straight Adaptor Male - Male (Cond. 1 to Cond. 2)
Cond. 1 to Cond. 3 P/N 178-6486
Series 311 Straight Adaptor Male - Male (Cond. 1 to Cond. 3)
Cond. 2 to Cond. 2 P/N 178-6487
Series 311 Straight Adaptor Male - Male (Cond. 2 to Cond. 2)
Cond. 2 to Cond. 3 P/N 178-6488
Series 311 Straight Adaptor Male - Male (Cond. 2 to Cond. 3)
Cond. 3 to Cond. 3 P/N 178-6489
Series 311 Straight Adaptor Male - Male (Cond. 3 to Cond. 3)

Male Protective Cover
(no electrical function)

Cond. 1 P/N 167-7058-1

Series 311 Male Protective Cover (Cond. 1)
Cond. 2 P/N 167-7058-2

Series 311 Male Protective Cover (Cond. 2)
Cond. 3 P/N 167-7058-3

Series 311 Male Protective Cover (Cond. 3)

Straight Adaptor Female - Female

Cond. 1 P/N 178-7631-1   Series 311 Straight Adaptor Female - Female (Cond. 1)
Cond. 2 P/N 167-7631-2
Series 311 Straight Adaptor Female - Female (Cond. 2)
Cond. 3 P/N 167-7631-3
Series 311 Straight Adaptor Female - Female (Cond. 3)

Download this page as a PDF for best print quality.



Non-Illustrated Special Order Connectors and Adaptors


Part NumberDescriptionMount TypePolarization
178-7375ReceptacleRearCond. 1
178-7376ReceptacleRearCond. 2
178-7377ReceptacleRearCond. 3

178-7023Sealed receptacleRearCond. 1
178-7024Sealed receptacleRearCond. 2
178-7025Sealed receptacleRearCond. 3

178-7370Sealed receptacleFrontCond. 1
178-7371Sealed receptacleFrontCond. 2
178-7372Sealed receptacleFrontCond. 3

167-7904-1Bulkhead feed-through Male-Male sealedPanelCond. 1
167-7904-2Bulkhead feed-through Male-Male sealedPanelCond. 2
167-7904-3Bulkhead feed-through Male-Male sealedPanelCond. 3


首頁 | 高壓電線電纜 | 高壓單點接頭 | 高壓38999接頭 | 高壓多點接頭 | 高壓D型接頭 | 高壓光纖接頭 | 高壓陶瓷接頭 | 高壓雲母電容 High Voltage Mica capacitor | 高壓放電管 High Voltage spark gap | 高壓倍壓整流器

新 北 市 汐 止 區 康 寧 街 169 巷 23 號 7 樓 之 一

公司電話:+886-2-2695-8906(代表號)

 02-2695-6755, 02-2695-7011, 02-2695-7033

公司傳真:+886-2-26958911

利偉 分機:21  jaco@bentech-taiwan.com

上次更新日期: 2016年04月13日。
