531 General Specifications

A series of high voltage connectors, kits and cable assemblies designed to minimize the risk of electrical shock to personnel through the use of recessed contacts. Both the panel and cable connectors have recessed contacts and will stand off the rated voltage in the unmated condition.
This series of connectors is rated at 10 KVDC and will operate at altitudes
up to 10,000 feet. Operating temperature is from -40 °C to +85°C.

531 Receptacle
P/N 167- 3555

Applications

Series 531 connectors are ideal for laboratory and research applications and the plug and receptacle are interchangeable with Kings connectors of the same type. The connectors are also well suited for use in ground based power supplies and other components where reliable high voltage connections are essential. These connectors feature a spring finger contact on the plug body which assures a reliable ground circuit prior to engagement of the center contact, further reducing the risk of electrical shock.

531 Plug
P/N 167- 3554

Interface cleaning

High voltage connectors must always be cleaned prior to mating. The proper cleaning method is to wipe or spray the interface area with isopropyl alcohol and immediately blow an inert gas such as dry nitrogen over the interface area until dry. No other cleaning method should be attempted.


Download PDF for all 531 Series General Specifications



531 Coaxial connectors. Bayonet coupling. Recessed contacts

Plugs (female)



P/N 167-3554   Series 531 Female Cable Connector (10 KVDC)

For sea level applications
Voltage rating: 10 KVDC at sea level
Cable: Reynolds type “C” coaxial cable P/N 167-2669
Braid termination: Crimp
Max. operating current: (RMS) 20 amps
Insulation resistance: 106 megohms
Mating connector: Reynolds receptacle P/N 167-3555

For cable preparation and assembly instructions Bulk cable.


Receptacles (male)

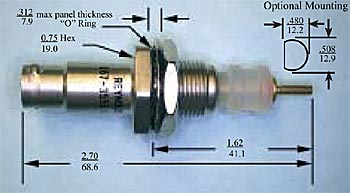

P/N 167-3555   Series 531 Male Receptacle (10 KVDC)

Voltage rating:10 KVDC rated at sea level
Pressure: Sealed for 15 psi differential pressure.
Max. Leakage: 1 X 10-6 cc/sec. He.
Mounting: Front mount. See optional “D” hole mounting
Mating connector: Mates all Reynolds series 531 plug cable assemblies.


Cable Assemblies



P/N 167-3648   Series 531 Double Ended Cable Assembly (10 KVDC)

Double ended 10 KVDC cable assembly for sea level operation
Uses Reynolds type “C” coaxial cable P/N 167-2669
Mates series 531 panel connector P/N 167-3555.

100% tests: 15 KVDC applied at sea level and ambient temperature in mated condition for 15 seconds. Continuity test.



P/N 167-4451   Series 531 Single Ended Pigtail Cable Assembly (10 KVDC)

Single ended 10 KVDC cable assembly for sea level operation
Pigtail end termination
Uses Reynolds type “C” coaxial cable P/N 167-2669
Mates series 531 panel connector P/N 167-3555.

100% tests: 15 KVDC at sea level and ambient temperature in mated condition for 15 seconds. Continuity test.

Download this page as a PDF for best print quality.



A series of high voltage connectors, kits and cable assemblies designed to minimize the risk of electrical shock to personnel through the use of recessed contacts. Both the panel and cable connectors have recessed contacts and will stand off the rated voltage in the unmated condition ar sea level.
The reduced pressure version is rated at 20 KVDC and will operate at reduced atmospheric pressure. The sea level version is rated at 20 KVDC. The operating temperature of both versions is limited to -40°C to +85°C



Applications

Series 521 connectors are ideal for laboratory and research applications. The connectors are also well suited for use in ground-based power supplies and other components where reliable high voltage connections are essential. These connectors feature a spring finger contact on the plug body which assures a reliable ground circuit prior to engagement of the center contact, further reducing the risk of electric shock.



Interface cleaning

High voltage connectors must always be cleaned prior to mating. The proper cleaning method is to wipe or spray the interface area with isopropyl alcohol and immediately blow an inert gas such as dry nitrogen over the interface area until dry. No other cleaning method should be attempted.

WARNING: These connectors should NEVER be handled, mated or unmated when voltage is applied.

Download PDF for all 521 Series General Specifications

521 Coaxial connectors. Bayonet coupling. Recessed contacts

P/N 167-3516   Series 521 Female Cable Connector (20 KVDC)

- For sea level applications
- Voltage rating: 20 KVDC
- Cable: RG 213/U or RG8/U. For RG 214/U or RG 9/U order connector P/N 167-3516-1
- Braid termination: Crimp
- Max. operating current: (RMS) 20 amps
- Insulation resistance: 106 megohms
- Mating connector: All series 521 receptacles
- Cable preparation and assembly instructions
- Bulk cable ordering & specifications





P/N 167-4534   Series 521 Female Cable Connector (20 KVDC)

- For reduced pressure applications
- Voltage rating: 20 KVDC
- Cable: RG 213/U. For RG 214/U cable, order P/N 167-4534-1
- Braid termination: Crimp
- Max. operating current: (RMS) 20 amps
- Insulation resistance: 106 megohms
- Mating connector: All series 521 receptacles
- Cable preparation and assembly instructions
- Bulk cable ordering & specifications


Receptacles (male)



P/N 167-3517   Series 521 Male Receptacle (20 KVDC)

- 20 KVDC rated
- Pressure: Sealed for 15 psi differential pressure. Max. Leakage: 1 X 10 -6 cc/sec. He.
- Mounting: Front mount. See mounting note
- Mating connector: Mates all series 521 plug cable assemblies.


Cable Assemblies



P/N 167-3638   Series 521 Double Ended Cable Assembly (20 KVDC)

- Double-ended 20 KVDC cable assembly for sea level operation
- Crimp braid termination
- Uses RG213/U cable (shown). Note: For RG 214/U cable, please specify when placing cable assembly order
- 100% voltage test: 28 KVDC @ ambient temperature and pressure
- Mates series 521 Panel connector P/N 167-3517

P/N 167-4450   Pigtail Cable Assembly (20 KVDC)

- Single-ended 20 KVDC cable assembly for sea level operation
- Crimp braid termination and pigtailed
- Uses RG213/U cable (shown). Note: For RG214/U cable, please specify when ordering cable assembly
- 100% voltage test: 28 KVDC @ ambient temperature and pressure.
- Mates series 521 panel connector P/N 167-3517





P/N 167-4569   Series 521 Double Ended Cable Assembly (20 KVDC)

- Double-ended 20 KVDC for reduced pressure operation
- Crimp braid termination
- Uses RG213/U cable (shown). Note: For RG214/U cable, please specify when ordering cable assembly
- Mates series 521 panel connector P/N 167-3517
- 100% voltage test: 41 KVDC @ 70,000 ft. (simulated) & ambient temp.





P/N 167-4596   Series 521 Single Ended Pigtail Cable Assembly (20 KVDC)

- Single-ended 20 KVDC cable assembly for reduced pressure operation
- Crimp braid termination and pigtailed
- Uses RG213/U cable (shown). Note: For RG 214/U cable, please specify when ordering cable assembly.
- Mates series 521 panel connector P/N 167-3517
- 100% voltage test: 41 KVDC @ 70,000 ft. (simulated) & ambient temp.



Download this page as a PDF for best print quality.

R75 General Specifications

R75 Cable Assemblies and Receptacles for Ground Level Applications

Designed for pulse and DC applications, the R75 series is the vital interconnecting link in many electronic systems. The use of exclusive design techniques assures corona resistant performance up to 75 KVDC.

The R75 series achieves its rugged dependability through factory molding and assembly procedures where cable ends or wire leads become an integral part of the connector

The molded coaxial connector concept with an air reducing interface seal, semiconducting rubber corona shields and special mating threads combine to provide connectors with low corona characteristics and a robustness suitable for operating under adverse environmental conditions.
Applications (limited to ground level)



Applications (limited to ground level)

R75 series assemblies are used in:

  • Radar systems
  • X-ray systems
  • Electron beam equipment
  • Accelerators
  • Electron microscopes
  • Pulse applications
  • Pulsed and direct current high voltage power supplies

Interface cleaning


High voltage connectors must always be cleaned prior to mating. The proper cleaning method is to wipe or spray the interface area with isopropyl alcohol and immediately blow an inert gas such as dry nitrogen over the interface area until dry. No other cleaning method should be attempted.

WARNING: These connectors should NEVER be handled, mated or unmated when voltage is applied.


    Download PDF for all R75 Series General Specifications


Corona-resistant cable assemblies and terminators, Page 1



  50-75 KVDC Rated Cable Assemblies for DC and Pulse Applications

Straight Cable Assembly
P/N RC1046 (uses coaxial cable P/N R1046-1)

R75 Series Straight Cable Assembly
P/N 2RC1046* (uses coaxial cable P/N R1006-1)
R75 Series Straight Cable Assembly



Cable type P/N R1046-1: Coaxial with 2 semiconductor layers, overmolded rubber primary insulation and neoprene outer jacket.
* Voltage rating is reduced to 50 KVDC





Right Angle Cable Assembly
P/N RC1060 (uses coaxial cable P/N R1059-1)

R75 Series Right Angle Cable Assembly
P/N 2RC1059* (uses coaxial cable P/N R1006-1)

R75 Series Right Angle Cable Assembly

Voltage rating: 75 KVDC or pulsed DC


Cable type P/N R1046-1: Coaxial with 2 semiconductor layers, overmolded rubber primary insulation and neoprene outer jacket
* Voltage rating is reduced to 50 KVDC


  Cable Shield Terminations


P/N 4RT1008 (with R1046-1 Cable)

R75 Series Cable Shield Terminations


P/N RT1008 (with R1006-1 Cable)*

R75 Series Cable Shield Termination


P/N 2RT1008 (with R1059-1 Cable)**

R75 Series Cable Shield Termination




P/N 4RT1007 (with R1046-1 Cable)

R75 Series Cable Shield Termination


P/N RT1007 (with R1006-1 Cable)*

R75 Series Cable Shield Termination


P/N 2RT1007 (with R1059-1 Cable)**

R75 Series Cable Shield Termination

Download this page as a PDF for best print quality.



Corona-resistant cable assemblies and terminators, Page 2

50-75 KVDC Rated Cable Assemblies for DC and Pulse Applications

P/N RC1061

R75 Series Male Receptacle (50 KVDC)



- (male contact)
- Mounting: Front flange
- Terminal type: Connection stud
- Seals: None
- Voltage rating: 50 KVDC

Receptacle

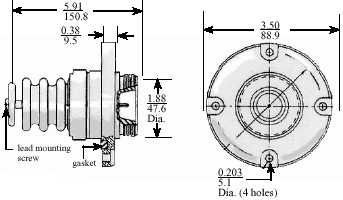

P/N RC1062

R75 Series Male Receptacle (75 KVDC)



- (male contact)
- Mounting: Front flange
- Terminal type: Lead mounting screw
- Seals: Gasket bulkhead seal
- Voltage Rating: 75 KVDC



Receptacle Cable Assembly

P/N 4RC 1063

R75 Series Male Receptacle Cable Assembly (50 KVDC)



- (male contact)
- Mounting: Front flange
- Terminal type: Cabled with silicone rubber cable. Specify length when ordering.
- Seals: “O” ring bulkhead seal
- Voltage rating: 50 KVDC


Specifications for Coaxial and Armored Cable • Rated to 75 KVDC

P/N R1046-1



- Corona Resistant Coaxial Cable
- Voltage rating: 75 KVDC
- Nom. Capacitance: 46 pf/ft./150 pf/m
- Nom. Impedance: 50 Ohms @ 1 MHz
- Operating temperature: -40°C to 85°C

P/N R1006-1



- Corona Resistant Coaxial Cable
- Voltage rating: 50 KVDC
- Nom. Capacitance: 50 pf/ft./164 pf/m
- Nom. Impedance: 48 Ohms @ 1 MHz
- Operating temperature: -40°C to 85°C

P/N R1059-1



- Armored Pulse Cable
- Voltage rating: 40 KVDC
- Nom. Capacitance: 50 pf/ft./164 pf/m
- Nom. Impedance: 48 Ohms @ 1 MHz
- Operating temperature: -40°C to 85°C

Download this page as a PDF for best print quality.
