Electronic Products Division - Santa Maria, California

Click here to see ISO 9001:2008 Certificate

Click here to see how Teledyne Reynolds can do your High Voltage Assembly, Potting & Testing for you

High Voltage Capacitors with Mica Reliability

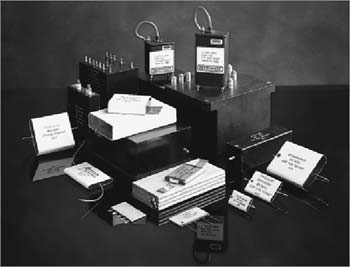

Mica Capacitor, High Voltage Capacitors
HIGH VOLTAGE CAPACITORS

• Temperature Stability (-65°C to 125°C)
• High Reliability (Proven Rel-testing)
• 100% Inspection (Capacitance, Voltage, Dissipation Factor and Burn-in)
• Capacitance Stability (Temperature, Voltage and Frequency)
• Low Inductance capability (EFI Applications)
• Mechanical Durability (Military Shock and Vibration Environments)


High Voltage Capacitors with Mica Paper
From Reynolds Industries
Electronic Products Division



Glossary of High Voltage Capacitor Terms:

MICA: Mineral silicates H2KA13(Si04 )3 naturally occurring. An excellent
insulator resistant to temperatures. Used as a dielectric in capacitors
and as insulation in high voltage, high temperature environments.

Reynolds High Voltage Capacitors with mica paper are manufactured with reliability as the prime
consideration. Reynolds engineers have developed and implemented an extensive reliability proofing program consisting of thermoset epoxy impregnated MICA dielectric systems over a period of 540,000 unit hours of operation. (consult the factory for reliability data)

Reynolds High Voltage Capacitors are available in a variety of configurations:

  • Raw Sections: For use in potted/embedded next higher assemblies.
  • Wrapped and End capped: For stand alone applications requiring no subsequent potting or embedment processes. Wrap material is Mylar® or woven glass.
  • Fiberglass Encased Epoxy-filled Construction: Provides the attributes
    of the epoxy molded configuration with no hard tooling required.
  • Low Inductance/High Current: Ideal for Exploding Foil Initiators (EFI).
    Micapacitors designed for very low inductance (6nH) and high currents (3 to 10 kA) are available in any of the above configurations. Similar low inductance, high current designs are available for Exploding BridgeWire initiators (EBW).


MicapacitorsSpecifications

General specifications
capacitance:
20 pF to 10 µF
Voltage Range: (operating)
1,000 to 60,000 D.C.
Temperature Range: (operating)
-55 to + 125 degrees C.
Energy Density:
0.2 to 1.5 joules per cubic inch.
(consult factory for application details)
Note: A two hour burn-in is performed
on every capacitor manufactured.

capacitor Proof Voltage
A DC voltage, as listed below, shall be applied for a period of five seconds with charge and discharge current limited to one ampere.
Rated Voltage Test Voltage
0 to 8.0 KV200%
8.1 to 10.0 KV175%
10.1 to 12.0 KV150%
12.1 to 20.0 KV140%
20.1 to 30.0 KV130%
30.1 KV and up120%
capacitance tolerance is plus or minus 10%


Dissipation Factor for High Voltage Capacitors, Mica Capacitors
Insulation Resistance for High Voltage Capacitors, Mica Capacitors
Capacitance Tolerance for High Voltage Capacitors, Mica Capacitors

High Voltage capacitors with mica paper

Applications
Epoxy Molded Capacitors
Epoxy molded assemblies can be configured in solid complex shapes and mounting arrangements. Units can contain several voltage and capacity values and a variety of terminations.
These configurations offer stand-alone shock, vibration and environmental security with Mica reliability.
Epoxy molded capacitors are currently qualified for use on major military and commercial programs.
Epoxy Molded Mica Capacitors
Mica Capacitors in Voltage MultipliersMica Paper capacitors in Voltage Multipliers
Raw high voltage capacitors are used in Reynolds Mica plier voltage multipliers. These units have output voltages ranging to 160 kVDC.
Mica pliers are used in a wide range of military and commercial applications.
Typical applications are: CRT anode and focus supplies for airborne EFIS (Electronic Flight Instrumentation Systems), X-Ray equipment and low power (mini) TWT's.
Mica Paper capacitor Variety
Shown arevarious configurations: Epoxy molded, fiberglass encased with epoxy filling, wrapped and end capped. Also shown are capacitors attached to low inductance strip lines for use on EFI and EBW initiators and ESA&F systems.
Various configurations of Mica Capacitors


Special Order High Voltage Capacitors with Mica Paper
Let us design a high voltage mica capacitor to your requirements by e-mail or FAX. Just
provide us with a few critcal items like operating voltage and temperature and in two
days we will provide critical dimensions, weight, price and delivery! ORDERING

Mica Paper
Only the finest Mica paper is used in the manufacture of Reynolds Mica paper capacitors. The material comes in a roll of a specified width and thickness and undergoes a thorough incoming inspection before use. Precision winding machines are used to wind the Mica material into a custom, computer generated configuration.
Mica Paper used in Mica Capacitors, High Voltage Capacitors
Raw Mica CapacitorsRaw mica paper capacitors
During the winding process, tabs are inserted to serve as termination points. The wound sections are then impregnated in a special epoxy and pressed to a specific density. The sections are then cured under pressure and post cured in an oven.
After extensive testing, the units are ready to be assembled into a next higher assembly by the customer or at Reynolds Santa Maria facility.
Wrapped & End Capped  capacitors
The raw capacitors are wrapped in
Mylar® or woven glass, have lead wires
attached and are end filled with epoxy. These units are a stand-alone configuration which require no subsequent potting or embedment processes.
Wrapped and end capped Mica Capacitors


Standard High Voltage Capacitors with Mica

All standard capacitors meet the specifications and testing requirements shown on the
Capacitors Specifications chart. Delivery: 3 days (stock) to 3 weeks. Click on ORDERING for price and delivery.
Part NumberVoltage
(KVDC)
nF (Cap.)LengthWidthThickness
M103A252A0002.5101.31/33.30.73/18.50.13/3.3PDF
DATA
SHEET
M253A252A0002.5251.56/39.60.83/21.10.18/4.6
M503A252A0002.5501.94/49.31.15/29.20.184/4.7
M104A252A0002.51002.19/55.61.36/34.50.24/6.1
M254A252A0002.52502.81/71.41.79/45.50.30/7.6

M502A502A002551.44/36.60.82/20.80.17/4.3PDF
DATA
SHEET
M103A502A0005101.69/42.90.97/24.60.20/5.1
M253A502A0005252.19/55.61.32/33.50.22/5.6
M503A502A0035502.56/65.01.62/41.10.26/6.6
M104A502A00451003.06/77.72.01/51.10.31/7.9

M252A752A0007.52.51.56/39.60.84/21.30.19/4.8PDF
DATA
SHEET
M502A752A0007.551.81/46.01.08/27.40.20/5.1
M103A752A0007.5102.19/55.61.32/33.50.22/5.6
M253A752A0007.5252.69/68.31.75/44.50.28/7.1
M503A752A0027.5503.19/81.02.16/54.90.33/8.4

M102A103A0001011.56/39.60.90/22.90.19/4.8PDF
DATA
SHEET
M252A103A000102.51.94/49.31.18/30.00.20/5.1
M502A103A0011052.19/55.61.35/34.30.23/5.8
M103A103A00010102.69/68.31.69/42.90.25/6.4
M253A103A00010253.19/81.02.08/52.80.34/8.6
M503A103A00310503.81/96.82.60/66.00.40/10.2

M102A133A00012.511.94/49.31.08/27.40.20/5.1PDF
DATA
SHEET
M252A133A00012.52.52.19/55.61.36/34.50.24/6.1
M502A133A00112.552.56/65.01.62/41.10.28/7.1
M103A133A00112.5103.12/79.22.06/52.30.27/6.9
M103A133A00112.5253.94/1002.72/69.10.35/8.9
M503A133A00112.5504.69/1193.26/82.80.41/10.4

M102A153A0011512.19/55.61.31/33.30.21/5.3PDF
DATA
SHEET
M252A153A000152.52.56/65.01.59/40.40.25/6.4
M502A153A0001552.81/71.41.81/46.00.31/7.9
M103A153A00115103.31/84.12.18/55.40.34/8.6
M253A153A00315254.44/1133.10/78.70.38/9.7

M102A203A0012012.57/65.31.58/40.10.25/6.4PDF
DATA
SHEET
M252A203A000202.52.82/71.61.78/45.20.25/6.4
M502A203A0002053.44/87.42.24/56.90.34/8.6
M103A203A00020104.19/1062.58/65.50.42/10.7
M253A203A00020255.32/1353.77/95.80.58/14.7

M501A253A000250.52.69/68.31.65/41.90.27/6.9PDF
DATA
SHEET
M102A253A0022512.82/71.61.84/46.70.31/7.9
M252A253A000252.53.32/84.32.26/57.40.36/9.1
M502A253A0012553.82/97.02.68/68.10.41/10.4
M103A253A00125104.69/1193.30/83.80.46/11.7

M501A303A000300.53.19/81.02.09/53.10.33/8.4PDF
DATA
SHEET
M102A303A0013013.57/90.72.46/62.50.35/8.9
M252A303A000302.54.32/1103.06/77.70.39/9.9
M502A303A0003054.69/1193.42/86.90.68/17.3
